A floor plan for home is the top-down layout drawing that defines how rooms connect, where walls and openings fall, and how people will move through the house. Because this layout is essentially permanent once built unlike finishes or furniture, which can be changed later getting it right before construction begins is one of the most consequential decisions in building or renovating a home. This guide covers what a floor plan communicates, the main layout types, the design process, and how visualization closes that understanding gap.
What does a floor plan for a home show?
A floor plan is the foundational drawing from which the rest of a home’s design follows a bird’s-eye view of a single level, showing room arrangement as if looking straight down from above. Every level of a multi-storey home requires its own plan.
A well-prepared floor plan communicates precise room dimensions, the location of structural and partition walls, door and window placement, and built-in features such as closets and stairs. Critically, it also shows how spaces connect to one another and anticipates how people will move through the home day to day information a plain outline cannot convey.
It is worth distinguishing a floor plan from related drawings: elevations show the building’s exterior faces, sections show a vertical cut through the structure, and 3D renderings provide a photorealistic view of the finished result. Each serves a different purpose, and together they give a complete picture of a design.
When do you need a floor plan?
A detailed floor plan is essential in several common situations:
Building a custom home required from the outset to match the layout precisely to your lifestyle.
Major renovations reconfiguring an existing layout requires an updated plan reflecting the proposed changes.
Home additions new space needs to integrate seamlessly with the existing plan.
Space conversions turning a garage or basement into living space benefits from a dedicated plan to optimize the new layout.
Special living arrangements multi-generational living or aging-in-place design requires careful planning for accessibility and privacy.
What makes a floor plan work well?
A successful floor plan prioritizes function and accounts for the details of daily life, not just an attractive arrangement of rooms.
Functional flow
The best layouts feel intuitive rather than requiring conscious navigation.
Entry sequences plan for both everyday and guest entries; a mudroom near the daily entry helps contain clutter.

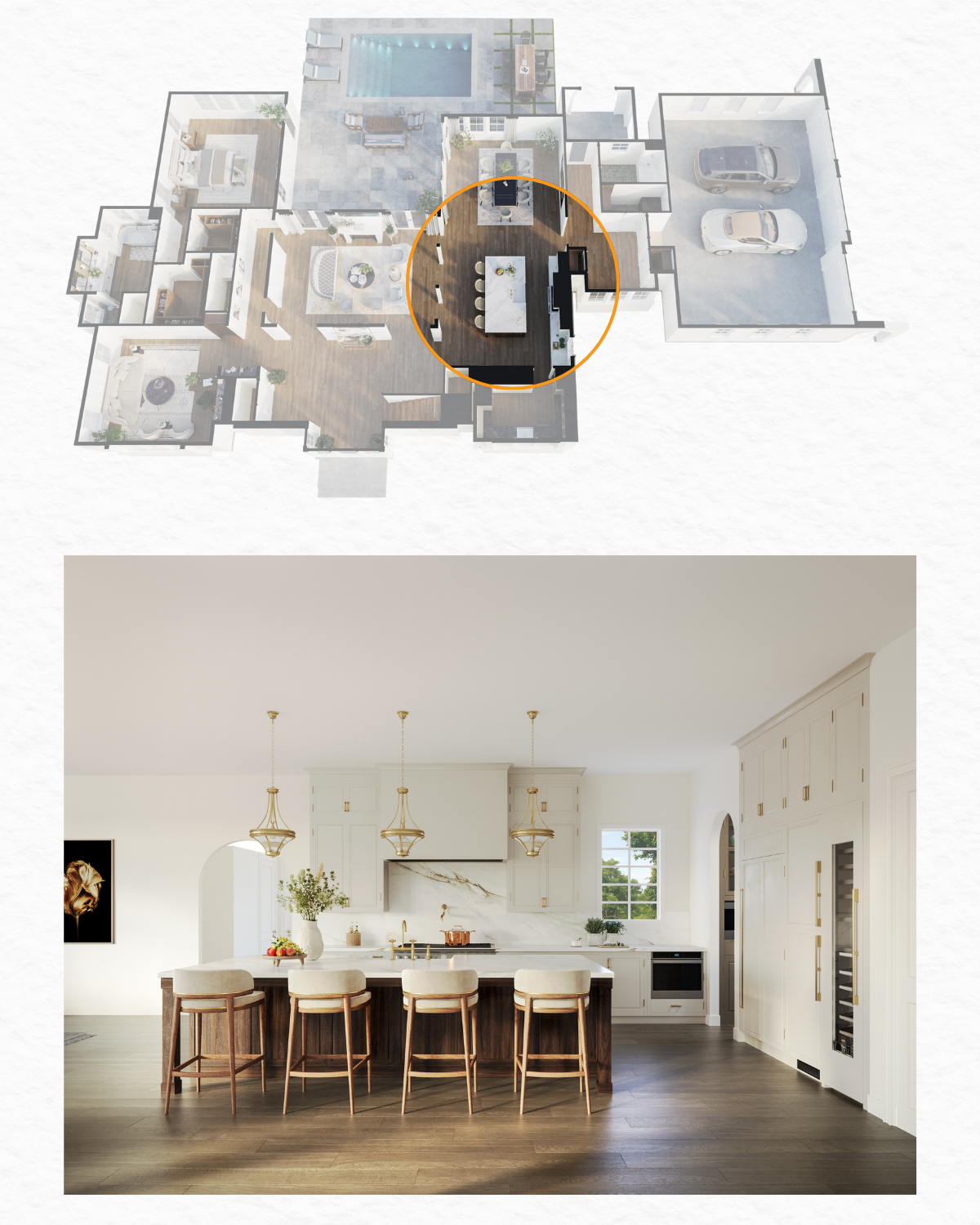

Kitchen placement and workflow as the hub of the home, the kitchen benefits from a visual connection to living areas and an efficient “work triangle” between the sink, stove, and refrigerator.
Bedroom privacy and acoustics separating quiet zones from active areas with buffer spaces improves rest.

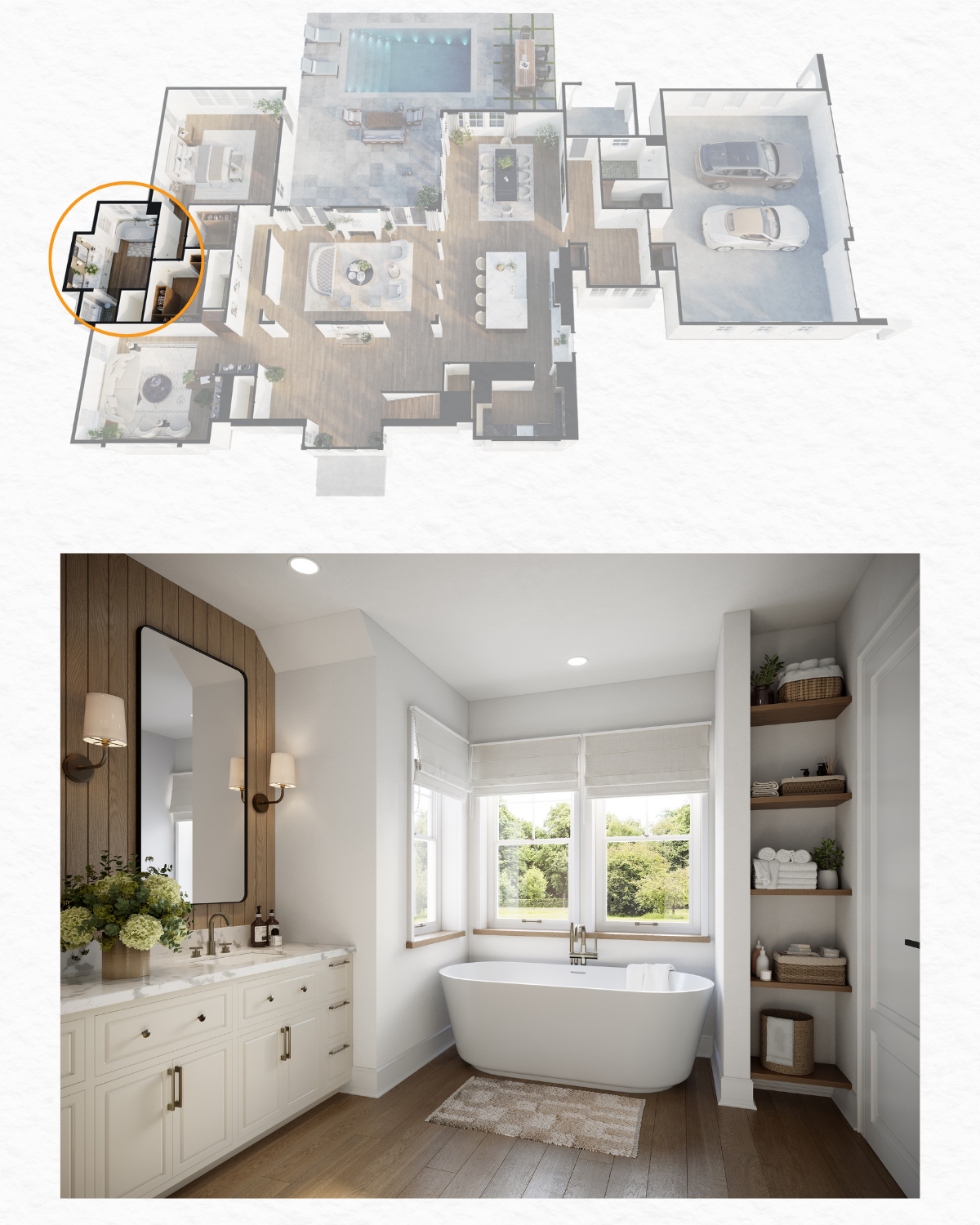

Bathroom logic guests should be able to reach a bathroom without passing through private zones; the number and placement of bathrooms affects the usability of the whole home.
Indoor-outdoor connection positioning living areas adjacent to a patio or deck effectively expands usable space.
Natural light window placement across multiple walls and the home’s solar orientation both affect how naturally lit a space feels.
Room placement strategy
Public versus private zones separating gathering spaces from retreats creates a more intuitive layout.
Master suite location balance the desire for privacy against practical proximity to the rest of the home.
Living space concept open-plan living feels spacious but offers less sound control, while a traditional, compartmentalized layout offers privacy at some cost to light and connection. The right choice depends on lifestyle.
Home office consider privacy, available space, and natural light; its position within the plan has a direct effect on how usable it actually is.
Dimensions and standards worth checking
Minimum dimensions prevent a plan from producing cramped rooms once built.

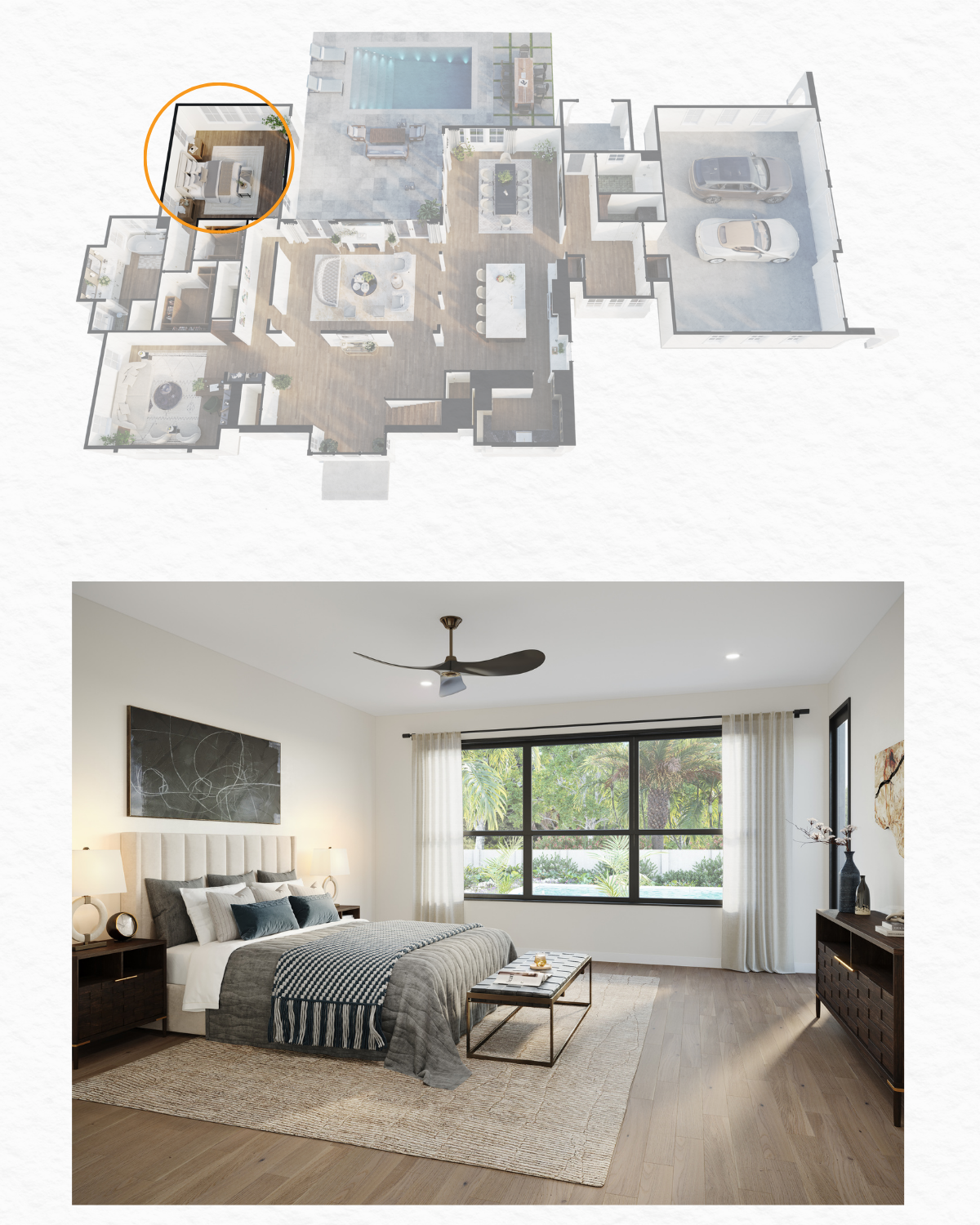

Bedrooms a primary bedroom is generally comfortable above roughly 14 x 16 feet; secondary bedrooms need at least about 10 x 12 feet.
Living rooms comfortable spaces typically start around 14 x 18 feet.
Kitchen aisles maintain roughly 48 inches of clearance for a comfortable workflow.
Hallways around 42 inches feels comfortable; wider adds a sense of spaciousness.
Door clearances test furniture layouts against door swing paths on the plan to avoid conflicts before they are built.
The main types of home floor plans
Different lifestyles and sites suit different layout types.
| Type | Advantages | Trade-offs |
|---|---|---|
| Single-storey (ranch) | All living on one level; strong accessibility and safety | Requires a larger building footprint |
| Two-storey | Land-efficient, generally more cost-effective, clear zone separation | Stairs can limit accessibility |
| Split-level | Well suited to sloped lots | Multiple short stair runs; can feel dated to some buyers |
| Open concept | Spacious, connected feel between living areas | Weaker sound control; requires more consistent tidiness |
| Traditional compartmentalized | Strong privacy and sound isolation between rooms | Can feel more closed-in; can limit light flow between spaces |
How a custom home floor plan comes together
Developing a floor plan for a custom home is a structured process, typically moving through four phases.
Phase 1: Needs assessment and programming
The starting point is a thorough look at the household’s needs, wants, and lifestyle listing every required space, defining how each will specifically be used, considering future needs, and understanding the budget and site constraints before any drafting begins. Decisions made carelessly at this stage are the hardest and most expensive to correct later.
Phase 2: Preliminary concepts
A designer explores several layout options. Reviewing early sketches helps clarify priorities and surfaces the trade-offs inherent in any layout before too much is invested in one direction.
Phase 3: Refinement
The chosen concept is fine-tuned dimensions adjusted, spatial relationships optimized, and, critically, furniture layouts tested against the plan to confirm the spaces will actually function as intended.
Phase 4: Final documentation
Detailed construction drawings are produced, translating the finalized layout into buildable documents, including the electrical and plumbing specifics tied to the plan. For more on what happens once a plan is finished and ready to market or sell, see our related guide to real estate floor plan drawings.
Working with professionals
The right professional depends on project complexity: an architect or draftsperson for the design itself, a builder for early cost insight, and an interior designer for advice on functional layout. Across all of these, visualization services add real value turning an abstract 2D plan into a realistic 3D representation lets everyone confirm the layout genuinely meets the household’s needs before construction begins, rather than discovering a problem once it is built.
Visualizing your floor plan
Modern tools go well beyond a flat 2D drawing for understanding a proposed layout.

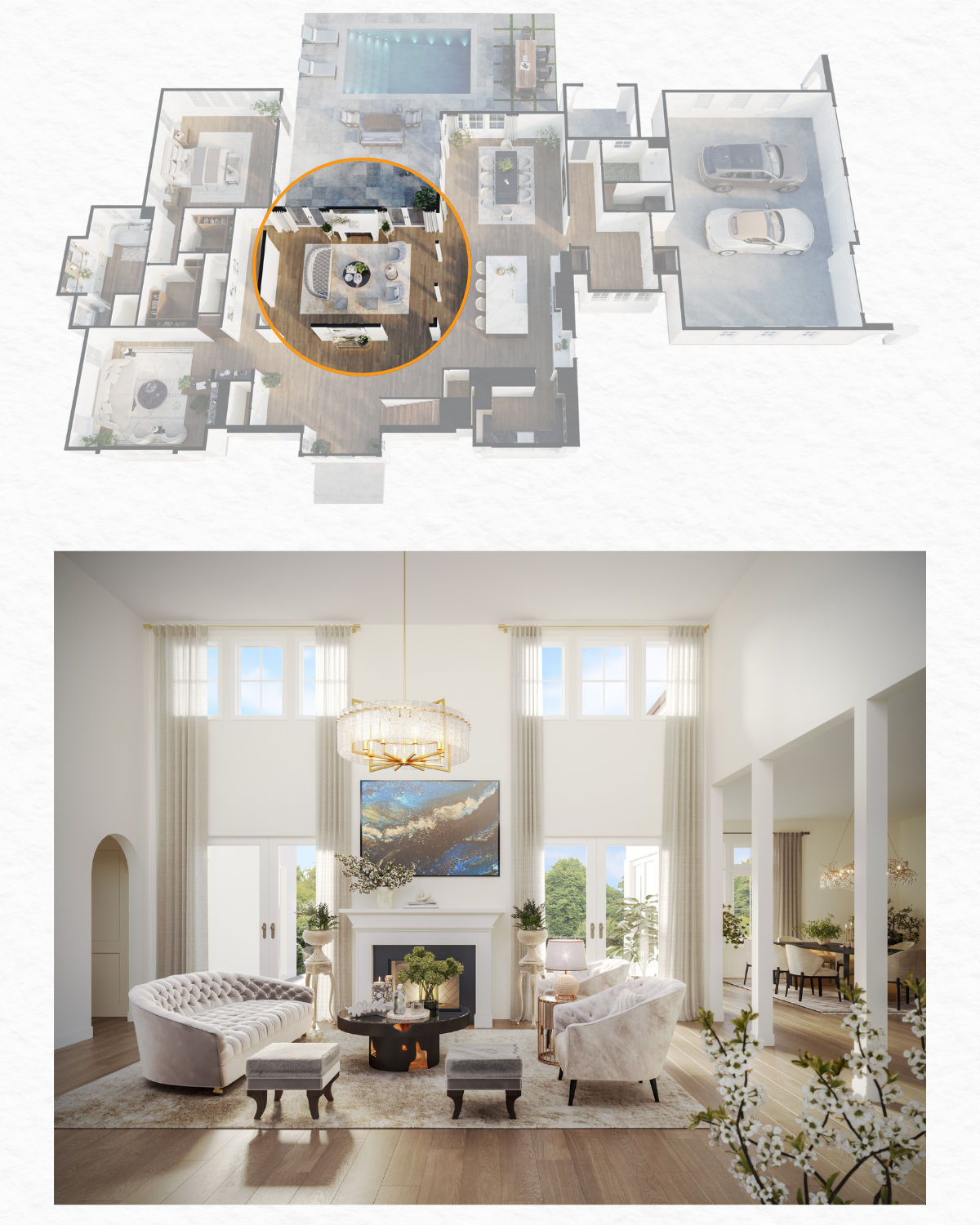

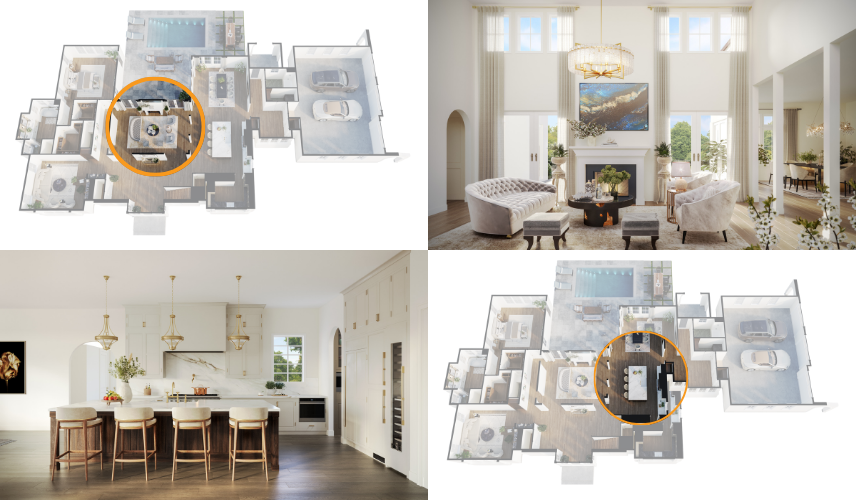

3D floor plans add depth and make spatial relationships far easier to grasp than a flat plan allows. See our 3D floor plan rendering service.
Virtual walkthroughs a digital, navigable tour of the planned home based on the approved layout, useful for experiencing flow before it is built. See our virtual tour service.
Augmented reality (AR) overlays the plan onto the actual site for real-world context and scale.
These tools help you judge proportions accurately, test how existing furniture will fit, experience traffic flow firsthand, communicate clearly with everyone involved, and avoid the costly changes that surface only once a plan is under construction. For complex layouts or a significant investment, 3D visualization is generally worth the modest added cost — see our overview of 3D rendering pricing for what to expect.
Practical tips for floor plan success
- Prioritize genuine must-haves over nice-to-haves.
- Consider resale value alongside personal preference.
- Choose function over fleeting trends.
- Plan for future flexibility rather than only current needs.
- Maximize storage throughout the layout.
- Integrate technology infrastructure early, while walls are still open on paper.
- Ensure adequate natural light reaches every main space.
- Verify that existing furniture will genuinely fit the new layout.
- Plan indoor-outdoor connections deliberately, not as an afterthought.
- Review the plan from multiple perspectives —2D, 3D, and if possible a walkthrough.
- Involve every household member before finalizing the design.
Building Homes That Serve You Beautifully
Your floor plan for home design profoundly shapes your daily experience. Thoughtful planning results in comfort and efficiency; mistakes create daily frustrations. The upfront investment in developing a well-considered floor plan for home yields immeasurable returns.
For homeowners and architects seeking that crucial bridge between abstract drawings and confident spatial understanding, professional visualization services from experts like MR Rendering Studio are transformative. Seeing a clear, realistic representation of your floor plan for home design before construction ensures the home you build truly matches the home you envision. Start planning your ideal floor plan for home today, your future self will thank you for the thoughtful investment you make now.
Frequently Asked Questions
What is the difference between a floor plan and a house plan?
A floor plan shows the top-down layout of a single-level room arrangement, walls, and openings. A full house plan is a broader set of documents that typically includes floor plans for every level, along with elevations, sections, and construction details.
How much does it cost to have a home floor plan designed?
Cost depends on the complexity of the home, whether it is a new custom design or a renovation, and the level of detail required. A licensed architect or draftsman can provide an accurate quote once your needs assessment is complete.
What is the ideal size for a primary bedroom?
Most primary bedrooms feel comfortable above roughly 14 x 16 feet, with enough room for a bed, circulation space, and typically an ensuite or walk-in closet nearby. Secondary bedrooms are generally workable from around 10 x 12 feet.
Should I choose an open-concept or a traditional floor plan?
It depends on lifestyle. Open-concept layouts feel spacious and connected but offer less sound control and require more consistent tidiness, since most of the home is visible at once. Traditional, compartmentalized layouts offer better privacy and noise separation at some cost to light and a sense of openness.
